SCM DMC SD 30

Wide Belt Sander

Full details of SCM DMC SD 30

Configure your machine

- +

more information

  • Features
    • Single and twin head combinations
    • Powered automatic table adjustment
    • Digital readout of working thickness
    • Natural rubber feed belt
    • Floating rubber coated pressure rollers
    • Electronic oscillation of sanding belts
    • Safety cut off device at infeed
    • Ammeter of main motor loading
    • Compact design
  • Description

    The SCM DMC SD 30 wide belt sander is available in a single or twin head versions with working widths of 950mm and 1100mm wide. Designed for calibrating and sanding solid wood, wood-based panels and veneered panels, the SD 30 can be pre-configured in one of three versions to suit your production.

    A version: Universal calibrating and sanding of solid wood.
    B version: Calibrating and sanding of solid wood and veneered material.
    C version: Solid wood and veneered calibrating and sanding also on honeycomb panels with irregular shapes and painted materials.

    As standard each machine features the following.

    Base and working table

    • steel structure with electric cabinet on the machine front
    • sanding belts introduction from the machine left side
    • powered adjustment of working thickness
    • main motor positioned inside the base

    Electrical equipment

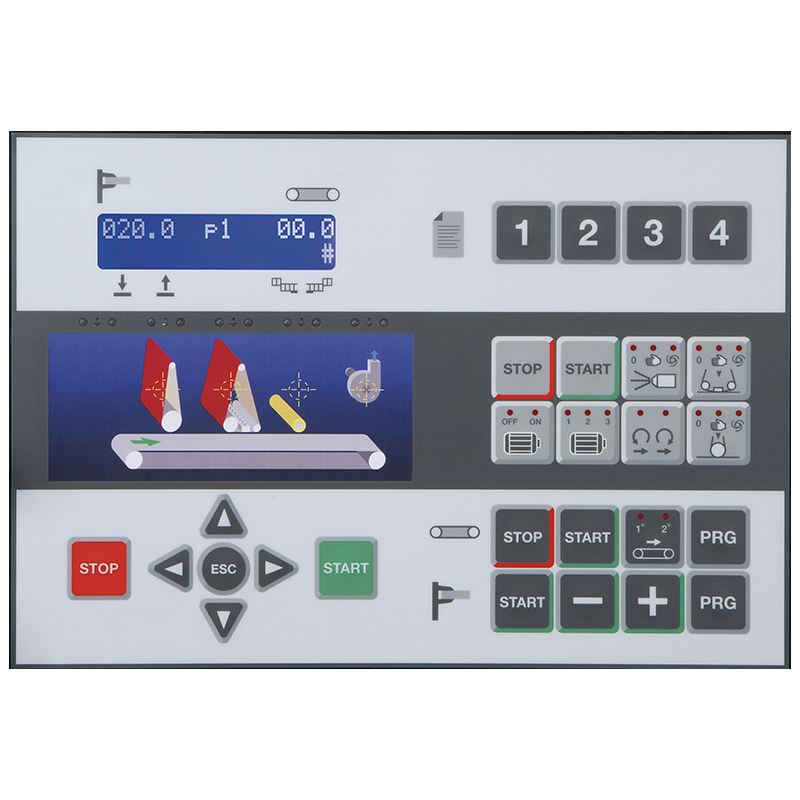

    • electromechanical keyboard positioned on the machine front side
    • automatic star delta start of the main motor
    • overload protections on the motors
    • IP54 motor protection

    Emergency and safety devices

    • automatic brake for rapid shutdown of the operating group
    • handsafety emergency device in the infeed panel area
    • front and rear emergency pushbutton
    • padlockable main switch
    • safety micro for overthickness automatic
    • emergency stop machine for:
      – sanding belt breaking
      – not tensioned sanding belt
      – lateral outplacement of sanding belt
      – absence of compressed air
      – overload on main motor
  • Specification
    • Head type Roller/ Combination (roller & pad)
    • Working width 950/ 1100 mm
    • Working thickness 4 - 170 mm
    • Contact roller diameter 120/ 140 mm
    • Contact roller type Rubber or Steel
    • Sanding belt length 1900 mm
    • Feed belt speed 4.5/ 9 m/min
    • Motor Various
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
