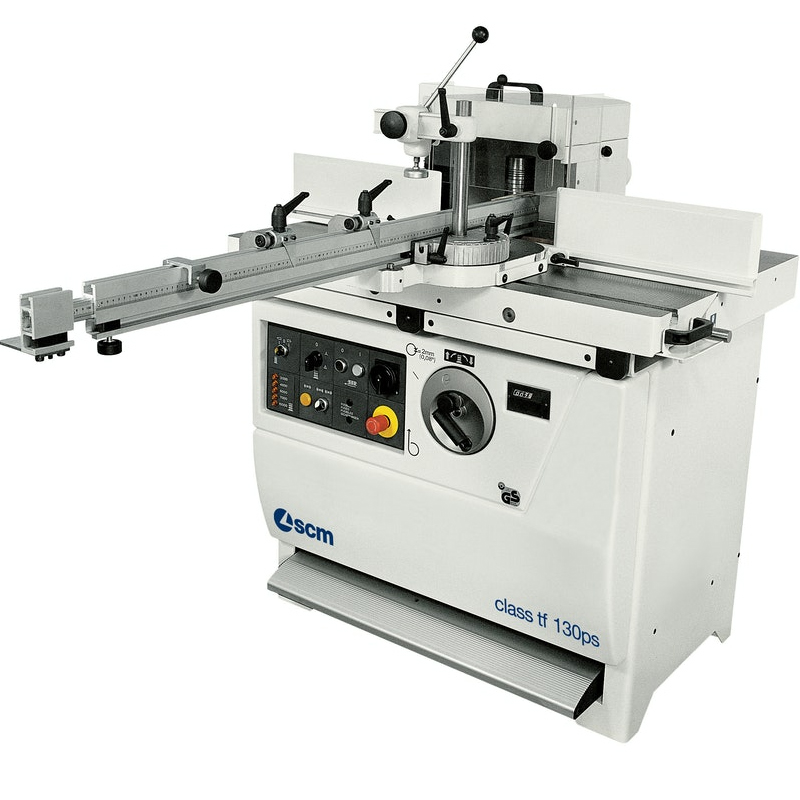

SCM Class TF 130PS

Spindle Moudler

Full details of SCM Class TF 130PS

Configure your machine

- +

more information

  • Features
    • Integrated sliding table
    • Fixed spindle
    • Manual rise and fall
    • Mechanical readout for shaft position
    • Reverse spindle rotation
    • Five spindle speeds
    • Spindle speed readout by LEDs
    • Cast iron table and fence assembly
    • Automatic star-delta start
  • Description

    The SCM Class TF 130 PS is equipped with a flush mounted aluminium sliding table for tenoning and profiling. This system includes a front carriage (1080 x 270 mm) sliding on hardened and rectified bar through ball bushing (1000 mm stroke), tenoning table, + 45° tiltable telescopic fence with reference to the feed direction.

    Apart from that, it is a heavy duty ‘no frills’ traditional spindle moulder with manual adjustment of the rise using the front mounted handwheels with mechanical digital readout for the height. As standard the machine is equipped with an adjustable fence with wooden tables complete with exhaust hood and connecting wooden table (max. tool diam. 250 mm).

    When working with larger workpieces, consider the optional “LL” version with infeed and outfeed extension tables and adjustable front sash support. Tenoning operations are also catered for with the optional “TL” version for end profile machining.

  • Specification
    • Tool diameter lowered under table 320 x 85 mm
    • Spindle shaft height 140 mm
    • Spindle diameter 30 mm
    • Spindle tilt -
    • Spindle speeds 3000/ 4500/ 6000/ 7000/ 10000 rpm
    • Worktable dimension 1080 x 760 mm
    • Extraction outlet(s) 2 x 120 mm
    • Motor 7 kW (9 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.
