Salvador SuperUp 600

Semi-Automatic Crosscut Saw

Full details of Salvador SuperUp 600

Configure your machine

Motor *

Infeed table (right hand side) *

Galvanized rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm, width 320 mm.

Outfeed table (left hand side) *

Galvanized rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm, width 320 mm.

Turnover stop, manual *

Minimum distance between first stop and blade 70 mm, minimum distance between two stops 60 mm

Turnover stop, pneumatic *

Minimum distance between first stop and blade 70 mm, minimum distance between two stops 60 mm

- +

more information

  • Features
    • Large cutting capacity
    • Two handed safe operation
    • Adjustable cutting speed
    • Heavy duty construction
    • Balanced saw unit
    • Pneumatic pressure beam
    • Choice of infeed/ outfeed table lengths
    • Manual and pneumatic stop options
    • Includes TCT sawblade
  • Description

    The SuperUp 600 offers the largest cutting capacity of all the semi-automatic Salvador crosscut saws. Featuring the same heavy duty construction as found across the range the SuperUp uses a pneumatically operated ‘up-stroke’ saw working in a pendulum motion for fast, efficient and safe 90° crosscutting.

    Safe operation is achieved through ergonomically positioned two button control. The pneumatic pressure beam secures the material during cutting and provides further operator protection. Two extraction ports remove waste from both above and below the cut. The cutting speed can be adjusted according to the material type and thickness being processed.

    To comply with safety regulations the machine must be supplied with one meter infeed and one meter outfeed tables. There is a choice of flat tables or roller tables, each 500mm wide, available up to virtually any length required. Optional manual or pneumatically operated flip over stops can also be configured.

  • Specification

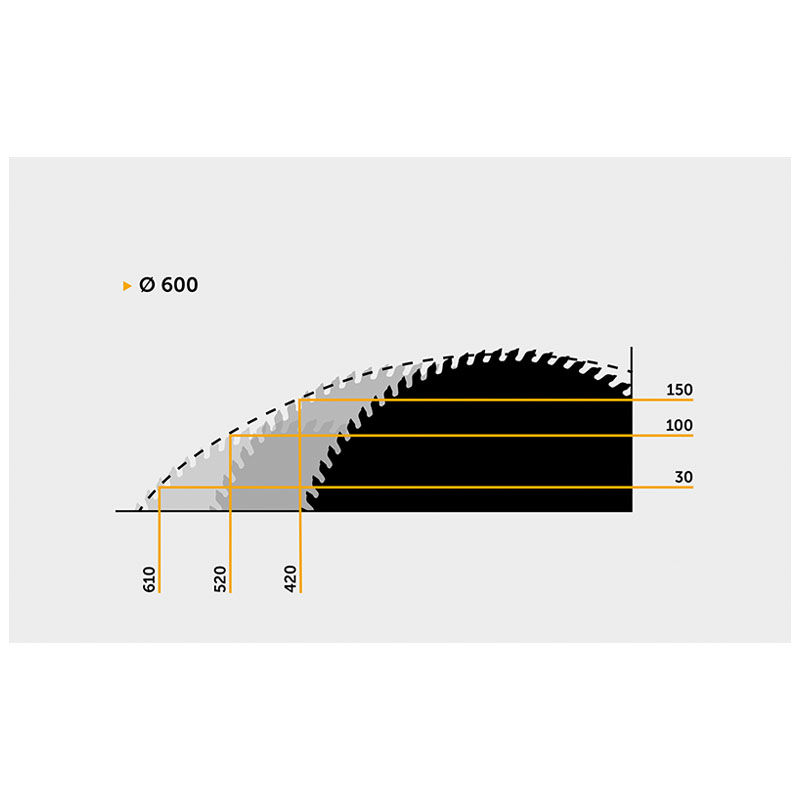

    • Blade diameter, max. 600 mm
    • Cutting depth, max. 150 mm (420 mm wide)
    • Cutting width, max. 610 mm (30 mm deep)
    • Blade speed 2750 rpm
    • Extraction outlet(s) 2 x 140 mm
    • Compressed air 6 - 8 bar
    • Working height 900 mm (+/- 20 mm)
    • Motor 9.2 kW (12.5 HP)
    • Power 3 phase
  • Literature
  • Important information

    Our suppliers have a policy of continuous product development and improvement, specifications are therefore subject to change without notice. We can accept no liability for discrepancies in specifications or illustrations contained in our publications or the publications of our suppliers.

Tooling & Spare Parts

Tooling and consumables as well as new and legacy spare part supply are available from our Support Services department.

Operator Training

We provide a range of training services from basic familiarisation to full certification covering both new and existing machinery.

Installation & Commissioning

Our factory trained installation engineers are available to setup your machinery ready for use.

Delivery

It is recommended that high quality equipment of this type be delivered using own specialist HI Ab service.
