Features
- Produces an accurate angle on the tool which can be preset and repeated
- Controlled 140 rpm wheel speed
- Force-fed recirculatory coolant system with anti-spill tray
- Integral oil resevoir with filter (5 litres of oil is supplies)

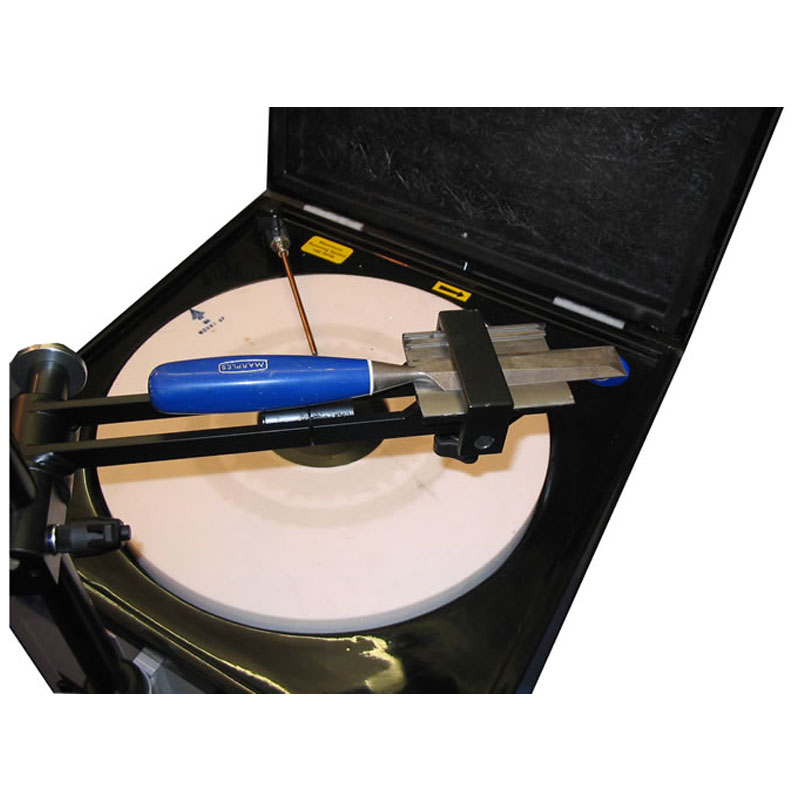

- Tool holder for chisels and plane blades up to 60 mm wide
- Centre swivel arm with vernier adjustment to ensure square and even contact betweentool and wheel
- Base cabinet with lockable access door
- Supplied with 406 mm diameter x 32 wide grinding wheel

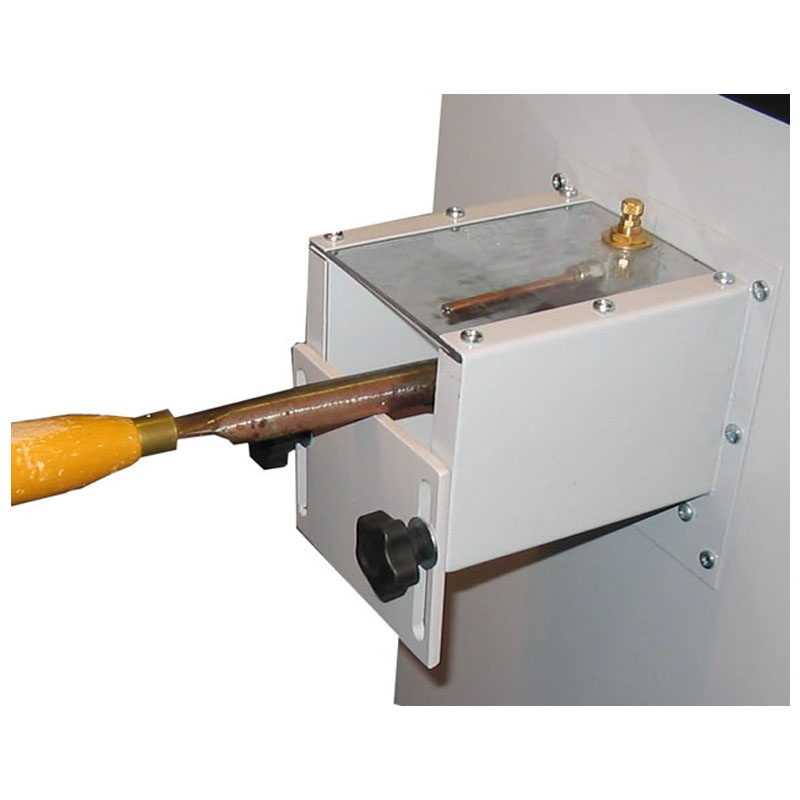

- Radius gouge tool holder (Bear 2 model only)
- 1500 rpm cone wheel with work rest and splash guard (Bear 2 model only)
Description
The RJH BEAR Toolgrinder is a unique machine designed specifically to assist the technician servicing the school or college workshop. The Bear saves time for the technician and eliminates manual grinding variability. It complies with the European Machinery Directive and with the BS4163:2007 “Health and Safety for Design and Technology in schools and similar establishments” regulations. All RJH education machines carry a 24 month warranty and are supplied with an operating manual.
Specification
- Wheel size 406 x 32 mm
- Wheel type Aluminium oxide A80
- Wheel speed 140 rpm
- Cone wheel size 75 mm x 100 mm
- Cone speed 1500 rpm
- Overall dimensions 615 mm (L) x 700 mm (W) x 1120 mm (H)
- Nett weight 115 kg
- Motor 0.18 - 0.25 kW (depending on specification)
- Power Single or 3 phase
